PUNCHES
|
|

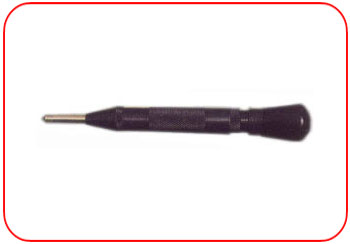

Marking Punch |
|
Prick Punches |
Item Code No.
ABM-PN-4659 |
Item Code No.
ABM-PN-4706 |
| |
* Single Hand Use Punch
* Fields of
Application : Stamping,
Seals,
Marking, Numbering,
Tracing, engraving |
|
|
Dia at Top of
Taper (MM) |
Body Dia x Length
(MM) |
|
|
2.0 |
7.0 x 100 |
|
2.5 |
7.5 x 100 |
|
3.5 |
8.0 x 100 |
|
4.0 |
9.5 x 100 |
|
* Made from Carbon Steel
* Front Taper
and Back Head in
Ground Finish
* Knurled
Body for easy Gripping
* Uniformly
Heat Treated
* Available
in Light and Heavy Duty |
|
|
Starting Punches
(Heavy Duty) |
|

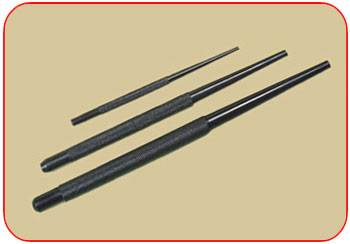

Taper Punches
(Aligner Punches) |
Item Code No.
ABM-PN-4710 |
Item Code No.
ABM-PN-4675 |
| |
Point
Size
(MM) |
Stock
Size x
Overall Length
(MM) |
|
|
Tip Dia. |
Body Dia. |
|
|
1.6 |
8 x 125 |
1/8"
(3.2 mm) |
7"
(175 mm) |
|
2.4 |
8 x 125 |
3/16"
(4.8 mm) |
9"
(225 mm) |
|
3.2 |
8 x 125 |
1/4"
(6.3 mm) |
10"
(250 mm) |
|
4.0 |
10 x 137 |
5/16" (8.0
mm) |
12"
(300 mm) |
|
4.8 |
10 x 137 |
Set of all
four Taper Punches |
|
5.5 |
10 x 137 |
in a Display
Pouch |
|
6.3 |
10 x 137 |
* Hardened and Tempered for
Long Life
* Knurled
Body for an easy grip
* Shiny Black
Finish
* Punches
are Ground
* Widely used
in Industry and Auto
Body Shops
* Available
in Plastic Pouch in
individual sizes and also in set
of
4 Pcs. in each sizes |
|
8.0 |
12 x 150 |
|
9.5 |
16 x 163 |
|
12.0 |
16 x 175 |
|
* Enamel
Painted Body with
Polished Working Ends
* Made from
High Quality Carbon
Steel
* Accurately
Hardened and
Tempered
* Suitable
for installing pins &
rivets
and for starting their
removal |
|
|
|

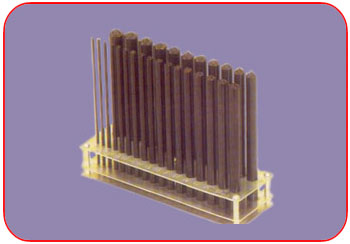

Transfer Punches |
|

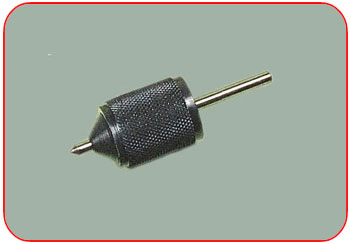

Universal Transfer Punch
and Aligner |
Item Code No.
ABM-PN-4680 |
Item Code No.
ABM-PN-4681 |
| |
* 28 Punches
* Length of
4-7/8"
*
Size Ranging From
3/32" to 33/64"
* Ideally suitable
for Tool Maker's
and
Machinist
* Heat
Treated and Tempered
* Black
Oxidized Finish
|
|
|
Range |
|
|
3/16" to 5/8"
(5 to 15 mm) |
|
3/16" to
1-3/16" (5 to 30 mm) |
|
* All parts are made from Steel
* Hardened
for longer life
* Perfect
hole centre alignment
assured
* Replaces
different sizes regular
* Transfer
Punches
* Available
in 2 Sizes |
|
|
|
|
|

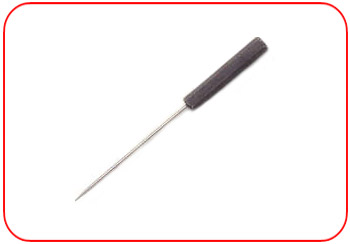

Utility Punch and Scriber |
|
|
Item Code No.
ABM-PN-4720 |
|
| |
Length |
Diameter of
Punch |
|
|
7-1/2"
(190 mm) |
5/32"
(4.0 mm) |
|
* Hexagonal Body for Comfortable
Grip
* Ideal for
Punching Holes in
Sheet
Metal
* Can also be
used as a Scriber
* Hardened Point
* Punch made
of tool Steel |
|
