PUNCHES
|
|

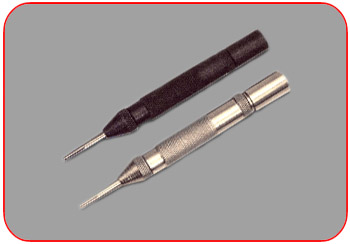

Automatic Centre Punch |
|

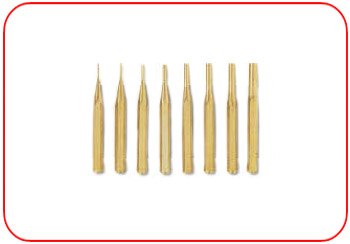

Brass Punches Non Sparking |
Item Code No.
ABM-PN-4601 |
Item Code No.
ABM-PN-4683 |
| |
|
|
|
Sizes |
|
|
* Available
in Steel Body and
Brass Body
* Hardened
and Ground Punch
Point
* Heavy
Knurled Body for Easy
Grip
* No Hammer
is required for
Operating Punch
* Force of
impact can be
regulated by turning the top
Knurled Cap
* Used for
marking Light Dotting to
heavy punching without having to
use a hammer |
1/16"
(1.6 mm) |
|
3/32"
(2.4 mm) |
|
1/8" (3.2 mm) |
|
5/32"
(4.0 mm) |
|
3/16"
(4.8 mm) |
|
7/32"
(5.5 mm) |
|
1/4" (6.3 mm) |
|
5/16"
(8.0 mm) |
|
|
|
* Made from
High Quality Brass
Hexagonal Stock
* Ideal
Punches for working in no
mar,
no spark situation
* 3-1/2" (90
mm) Long
* Also
available set of 8 pcs. |
|
|
|

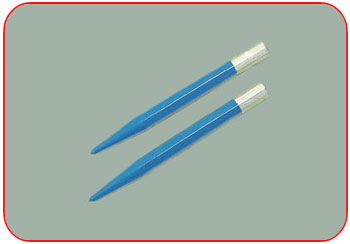

Centre Punch |
|

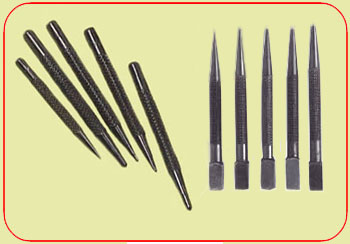

Centre Punches
(Round and Square Head) |
Item Code No.
ABM-PN-4602 |
Item Code No.
ABM-PN-4603 |
| |
|
|
|
Tip
Dia. |
Body Dia. |
|
|
* Made from
alloy Steel
* Hardened and
Tempered
* In Hexagonal
Shape
* Tip Dia.
1/4" Length 6"
|
1/16" |
3" |
|
5/64" |
4" |
|
3/32" |
4" |
|
9/64" |
4" |
|
5/32" |
4" |
|
|
|
|
Set of 5 Centre
Punches in a pouch |
|
consisting of
1/16", 5/64", 3/32", 9/64" |
|
and 5/32" |
|
|
|
* While Placing
order, please mention
Round
Head or Square Head
* Made from
Tool Steel
* Hardened
and Ground
* Black Shiny
Finish with knurled
Body for Easy Grip
* Available
in plastic Pouch in
Individual Sizes and also in a set
of
5 Pcs each size |
|
|

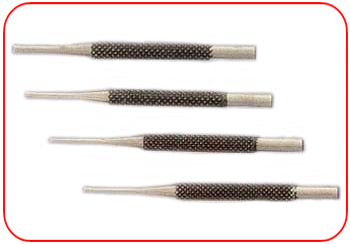

Drive Pin Punches 6 Inch
(150 mm) Long |
|

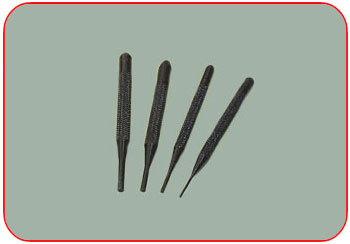

Drive Pin Punches
(Four Inch Long) |
Item Code No.
ABM-PN-4691 |
Item Code No.
ABM-PN-4609 |
| |
Diameter of
Pin |
|
|
Tip. Dia. |
|
|
1/16"
(1.6 mm) |
1/16"
(1.6 mm) |
|
3/32"
(2.4 mm) |
3/32"
(1.6 mm) |
|
1/8"
(3.2 mm) |
1/8"
(1.6 mm) |
|
5/32"
(4.0 mm) |
5/32"
(1.6 mm) |
|
3/16"
(4.8 mm) |
3/16"
(1.6 mm) |
|
7/32"
(5.5 mm) |
7/32"
(1.6 mm) |
|
1/4"
(6.3 mm) |
1/4"
(1.6 mm) |
|
5/16"
(8.0 mm) |
5/16"
(1.6 mm) |
|
|
Set of 4
Drive Pin Punches in a |
|
|
Pouch consisting
of 1/16", 3/32, 1/4" |
|
* Made from
Carbon Steel
* Uniformly
Heat Treated
* Ground
Finish and knurled Body
for
easy Grip
* Length of
Pin 1-3/4" (45 mm)
* Sets also
available packed in
beautiful plastic pouch |
and 5/32" |
|
Set of 8
Drive Pin Punches in a |
|
Pouch consisting
of 1/16", 3/32", |
|
1/8", 5/32", 3/16",
7/32", 1/4" & 5/16" |
|
|
|
* Drive Pin
Punches are made from
Tool
Steel
* Hardened and
Tempered
* 4" Long
with knurled body for an
easy grip and are in black
oxidized finish
* Available in
individually sizes and
also
in set of 4 & 8 in attractive
plastic
pouches |
|
